Product information:

Packaging size: 150 * 18 * 80mm
Supports a maximum input resolution of 4K;
Supports a maximum output resolution of 1080P; 60fps
Supports 8/10/12 bit color depth;
Supports most collection software, such as VLC, OBS, Amcap, etc;
Supports Windows, Android, and MacOS;
Complies with USB video UVC specifications;
Complies with USB audio UAC specifications;
No need for external power supply, compact and convenient to carry.
HDMI resolution: supports up to 1080P input
Video input format: 8/10/12 bit color depth
Video output modes: YUV, JPEG
Video output resolution: 1080P output resolution
Support audio format: L-PCM
Input cable length: ≤ 15 meters, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC
Hardware requirements for computers
CPU: desktop computer i5-3400 or above, laptop computer i7-3537u2.0 GHz or above
Graphics card: desktop NVIDIA GT630 or above, laptop NVIDIA GT735M or above
Memory: 4G RAM
If it is a version before Windows 7, please install the driver first
Product Introduction:

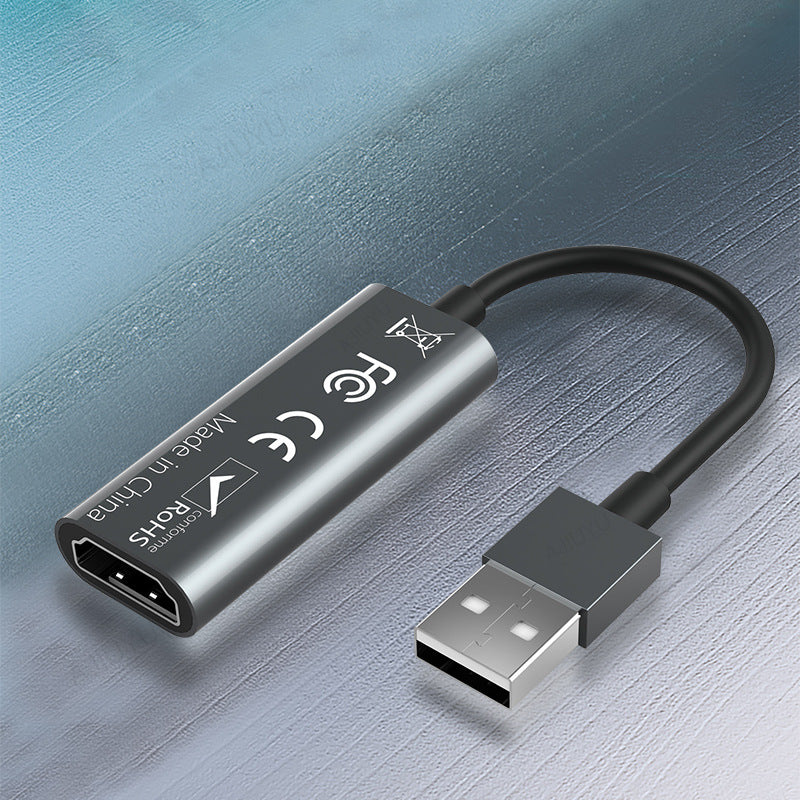

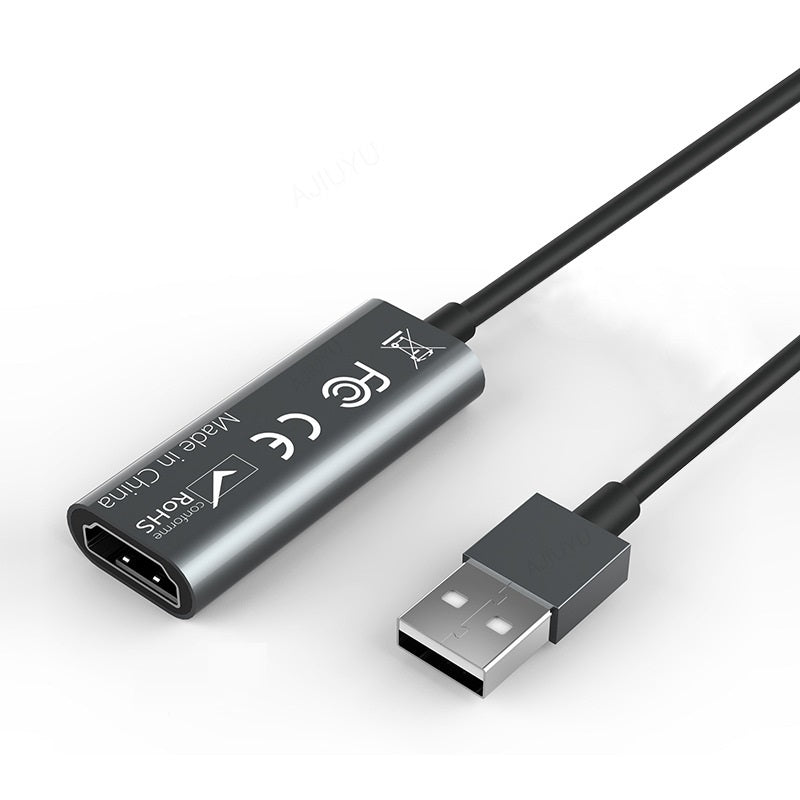

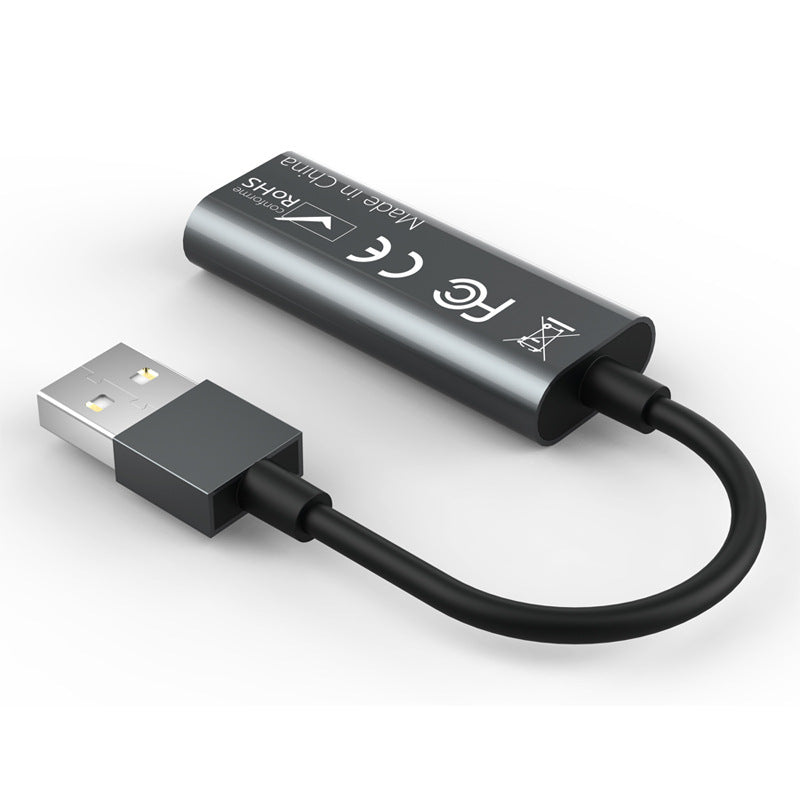

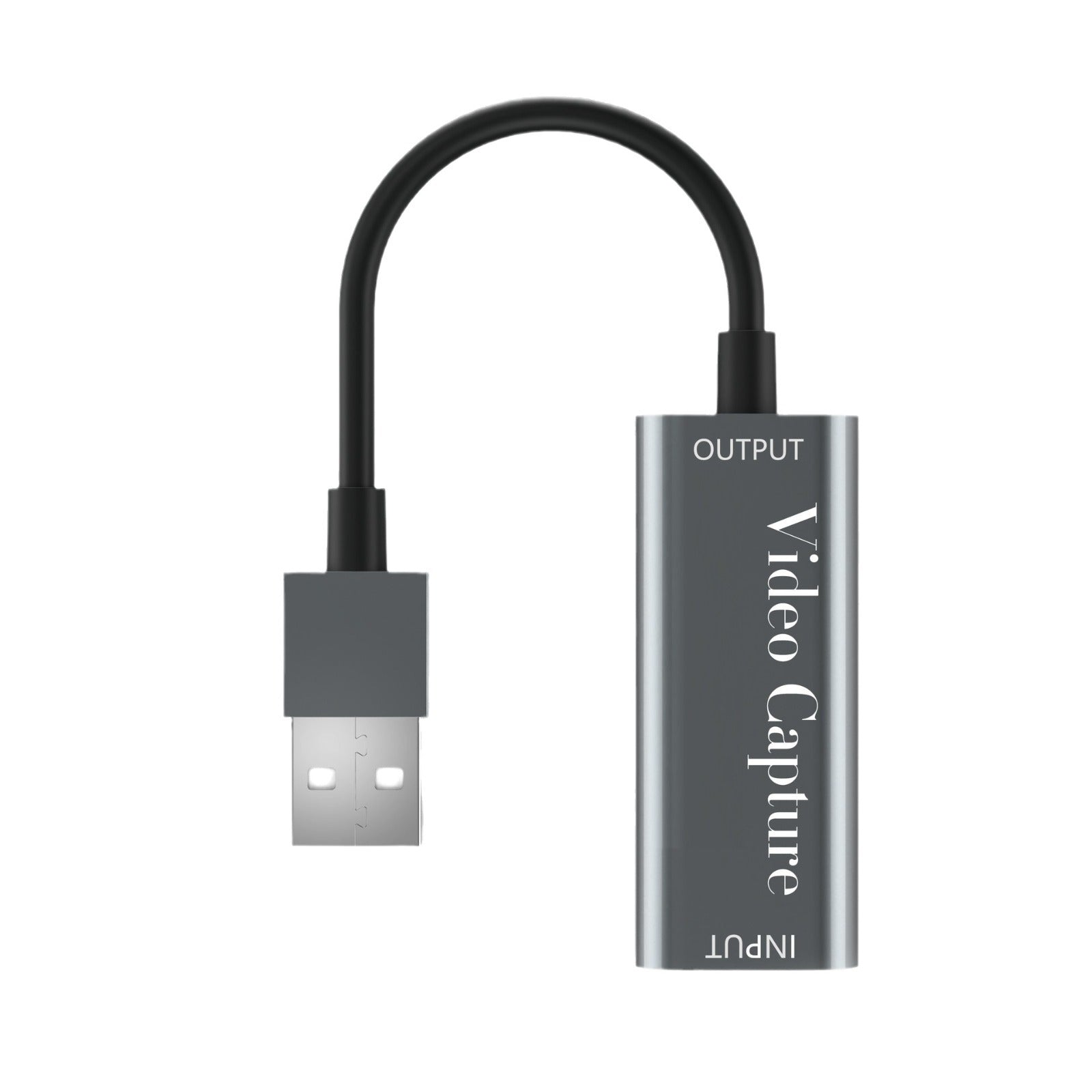

This USB 2.0 capture card can capture both HDMI videos and HDMI audio simultaneously, and can transmit audio and video signals to computers and smartphones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
*Supports a maximum input resolution of 1080P;
*Supports a maximum output resolution of 1080P;
*Supports 8/10/12 bit color depth;
*When supporting the use of standard AWG26 cables, the input transmission distance can reach 15 meters (1080P and below resolution);
*Supports most collection software, such as VLC, OBS, Amcap, etc;
*Supports Windows, Android, and MacOS;
*Complies with USB video UVC specifications;
*Complies with USB audio UAC specifications;
*No need for external power supply, compact and convenient to carry.
Product specifications:
Specifications:
HDMI resolution Up to 1080P support for maximum input
Video input format 8/10/12 bit color depth
Video output mode YUV, JPEG
Video output resolution Maximum output resolution 1080P
Support audio formats L-PCM
Input cable length... ≤ 15 meters, AWG26 HDMI standard cable
Maximum working current 0.4A/5VDC
Working temperature range (-10 to+55 ℃)

Packing list:
  Acquisition card * 1
